  • INGERSOLL 1KJ1D-0801784R01 Milling Cutter 90.0° 0.875 Weldon 0.7500 2 Flute Coolant 0.275 Max DOC 3.750 OAL

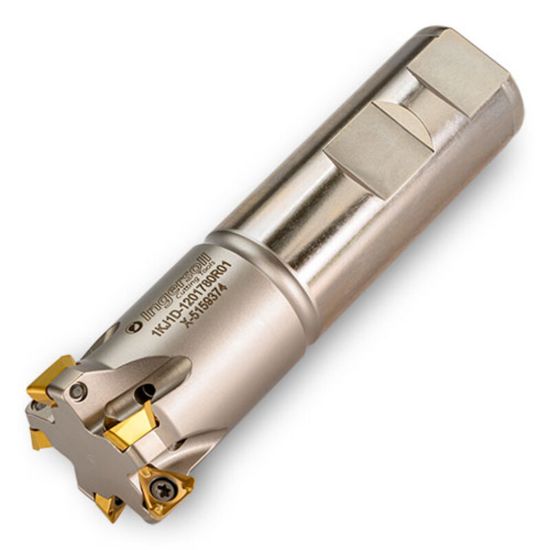

Picture of INGERSOLL 1KJ1D-0801784R01 Milling Cutter 90.0° 0.875 Weldon 0.7500 2 Flute Coolant 0.275 Max DOC 3.750 OAL

INGERSOLL 1KJ1D-0801784R01 Milling Cutter 90.0° 0.875 Weldon 0.7500 2 Flute Coolant 0.275 Max DOC 3.750 OAL

ANSI: 1KJ1D-0801784R01

ISO: 1KJ1D-0801784R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031464
Delivery date: 3-5 days
$376.13

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing, Roughing
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Insert Type Positive
Package Size 1
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Depth Of Cut Max 0.2750
Insert Size Ic 6
Cut Dia Min 0.8750 22.23MM - 7/8
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Cutter Dia 0.8750 22.23MM - 7/8
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style TH
Max Ramp Angle 2.50°
Insert Shape/Cutter Pocket Shape Triangle
