  • INGERSOLL 1KJ1D-0703084R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.275 Max DOC 5.000 OAL

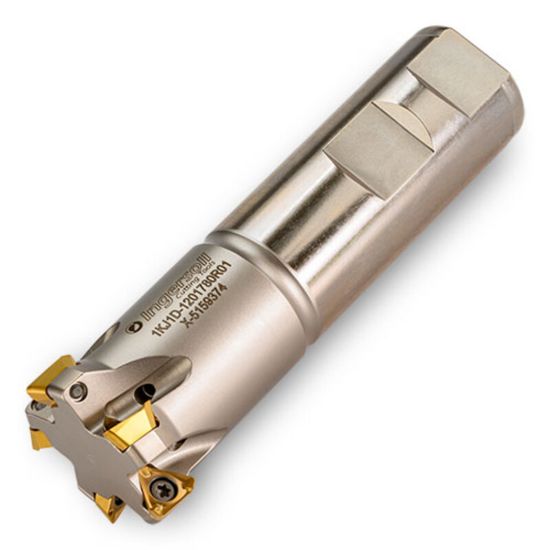

Picture of INGERSOLL 1KJ1D-0703084R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.275 Max DOC 5.000 OAL

INGERSOLL 1KJ1D-0703084R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.275 Max DOC 5.000 OAL

ANSI: 1KJ1D-0703084R01

ISO: 1KJ1D-0703084R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031471
Delivery date: 3-5 days
$356.53

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing, Finishing
Insert/Tool Tool
Application Pocket Milling, Face Milling, Ramp Milling, Side Milling, Slot Milling
Shipping State Illinois
Made In USA No
Package Size 1
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.2750
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Weldon
Tool Material Steel
Insert Size Ic 6
Flutes/Inserts 2
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 5.0000 127.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style TH
Insert Shape/Cutter Pocket Shape Triangle
Max Ramp Angle 3.10°
