  • INGERSOLL 1KJ1D-0702084R01 Milling Cutter 90.0° 0.725 Weldon 0.7500 2 Flute Coolant 0.275 Max DOC 4.000 OAL

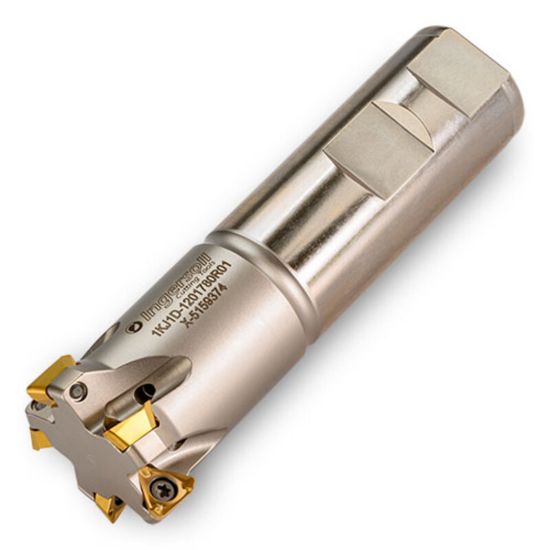

Picture of INGERSOLL 1KJ1D-0702084R01 Milling Cutter 90.0° 0.725 Weldon 0.7500 2 Flute Coolant 0.275 Max DOC 4.000 OAL

INGERSOLL 1KJ1D-0702084R01 Milling Cutter 90.0° 0.725 Weldon 0.7500 2 Flute Coolant 0.275 Max DOC 4.000 OAL

ANSI: 1KJ1D-0702084R01

ISO: 1KJ1D-0702084R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031479
Delivery date: 3-5 days
$320.13

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Face Milling, Slot Milling
Insert Application Semi Finishing, Finishing, Roughing
Insert Type Positive
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Cut Dia Min 0.7250 18.42MM
Insert Size Ic 6
Cutter Dia 0.7250 18.42MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Depth Of Cut Max 0.2750
Cutting & Machining Properties
Insert Style TH
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Max Ramp Angle 3.10°
