  • INGERSOLL 1DJ1F-1001584R01 Milling Cutter 90.0° 1.000 Weldon 0.7500 2 Flute Coolant 0.244 Max DOC 3.500 OAL

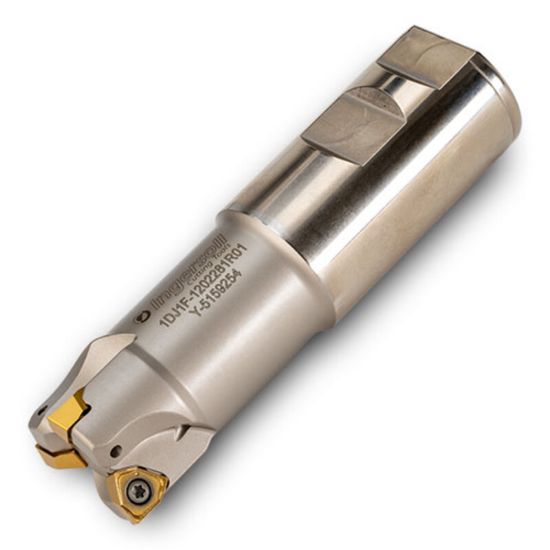

Picture of INGERSOLL 1DJ1F-1001584R01 Milling Cutter 90.0° 1.000 Weldon 0.7500 2 Flute Coolant 0.244 Max DOC 3.500 OAL

INGERSOLL 1DJ1F-1001584R01 Milling Cutter 90.0° 1.000 Weldon 0.7500 2 Flute Coolant 0.244 Max DOC 3.500 OAL

ANSI: 1DJ1F-1001584R01

ISO: 1DJ1F-1001584R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031721
Delivery date: 3-5 days
$276.27

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Roughing, Semi Finishing
Application Face Milling, Side Milling
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Machine Side Connection Type Weldon
Depth Of Cut Max 0.2440
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 3.5000 88.90MM
Insert Size Ic 9
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Cutting & Machining Properties
Insert Style WN
Insert Shape/Cutter Pocket Shape Trigon
Coolant Thru Yes
