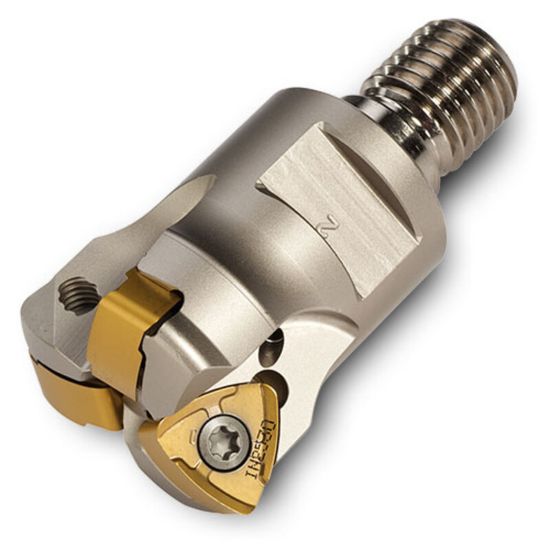

Picture of INGERSOLL 1DG1P-12017X8R01 Milling Cutter 1.250 Screw M16 2 Flute Coolant 0.0787 Max DOC

INGERSOLL 1DG1P-12017X8R01 Milling Cutter 1.250 Screw M16 2 Flute Coolant 0.0787 Max DOC

ANSI: 1DG1P-12017X8R01

ISO: 1DG1P-12017X8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2913866
Delivery date: 3-5 days
$434.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Feed Milling, Face Milling, Slot Milling, Ramp Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Type Negative
Insert Application Roughing
Made In USA No
Dimensional Specifications
Cut Dia Max 1.2500 31.75MM - 1-1/4
Machine Side Connection Size M16
Depth Of Cut Max 0.0787
Cut Dia Min 0.4970 12.62MM
Tool Material Steel
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Screw On
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Trigon
Max Ramp Angle 0.70°
