  • INGERSOLL 1DB1H-1203181R02 Milling Cutter Button Cutter 1.250 Cylindrical 1.2500 2 Flute 0.25 Max DOC 5.510 OAL

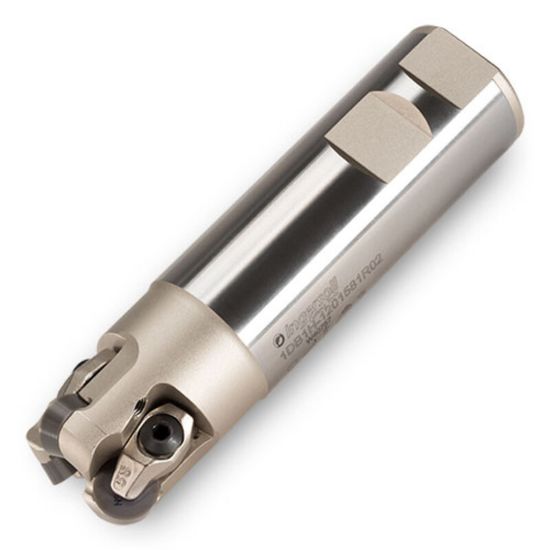

Picture of INGERSOLL 1DB1H-1203181R02 Milling Cutter Button Cutter 1.250 Cylindrical 1.2500 2 Flute 0.25 Max DOC 5.510 OAL

INGERSOLL 1DB1H-1203181R02 Milling Cutter Button Cutter 1.250 Cylindrical 1.2500 2 Flute 0.25 Max DOC 5.510 OAL

ANSI: 1DB1H-1203181R02

ISO: 1DB1H-1203181R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6322761
Delivery date: 3-5 days
$420.93
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Pocket Milling, Ramp Milling, Round Milling
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Dia Min 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Overall Len 5.5100 139.95MM
Depth Of Cut Max 0.2500
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 12
Cut Dia Max 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Insert Style RP
Max Ramp Angle 0.20°
Coolant Thru No
