  • INGERSOLL 1DB1H-1201581R02 Milling Cutter Button Cutter 1.250 Cylindrical 1.2500 3 Flute 0.25 Max DOC 4.720 OAL

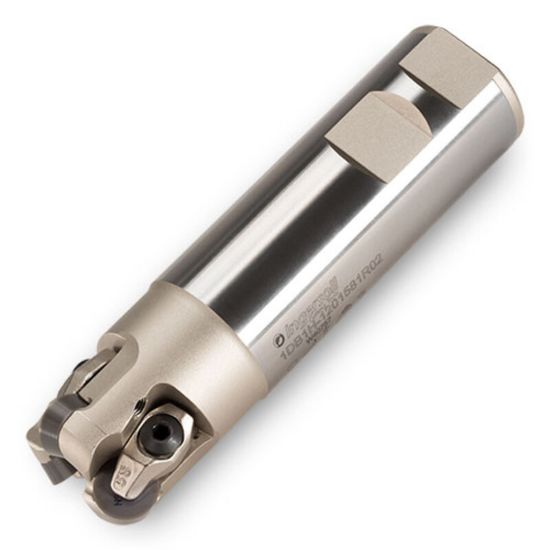

Picture of INGERSOLL 1DB1H-1201581R02 Milling Cutter Button Cutter 1.250 Cylindrical 1.2500 3 Flute 0.25 Max DOC 4.720 OAL

INGERSOLL 1DB1H-1201581R02 Milling Cutter Button Cutter 1.250 Cylindrical 1.2500 3 Flute 0.25 Max DOC 4.720 OAL

ANSI: 1DB1H-1201581R02

ISO: 1DB1H-1201581R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6322762
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Ramp Milling, Face Milling, Round Milling, Pocket Milling
Package Size 1
Insert/Tool Tool
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Cylindrical
Overall Len 4.7200 119.89MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Cut Dia Min 0.7500 19.05MM - 3/4
Insert Size Ic 12
Cut Dia Max 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Depth Of Cut Max 0.2500
Cutter Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Coolant Thru No
Insert Style RP
Max Ramp Angle 0.20°
