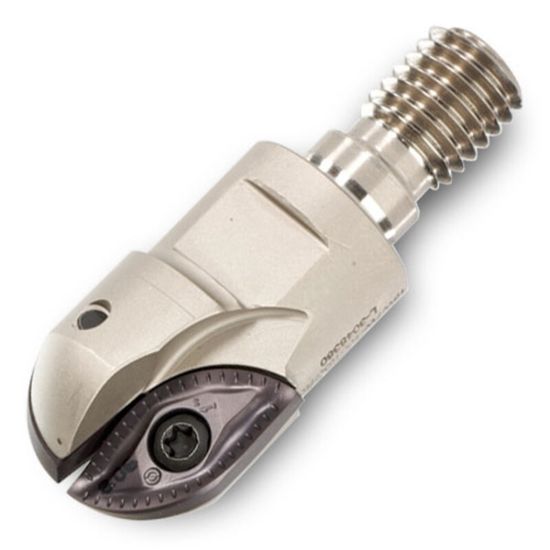

Picture of INGERSOLL 1BW7W-10015X7R01 Milling Cutter 1.000 Screw M12 2 Flute Coolant 0.18 Max DOC

INGERSOLL 1BW7W-10015X7R01 Milling Cutter 1.000 Screw M12 2 Flute Coolant 0.18 Max DOC

ANSI: 1BW7W-10015X7R01

ISO: 1BW7W-10015X7R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3028604
Delivery date: 3-5 days
$376.13

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing
Insert Type Positive
Application Profile Milling, Copy Milling
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Flutes/Inserts 2
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Insert Size Ic 25
Depth Of Cut Max 0.1800
Cutting & Machining Properties
Insert Style NC
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
