  • INGERSOLL 1BW7V-0701584R01 Milling Cutter 0.750 Weldon 0.7500 2 Flute Coolant 0.375 Max DOC 3.500 OAL

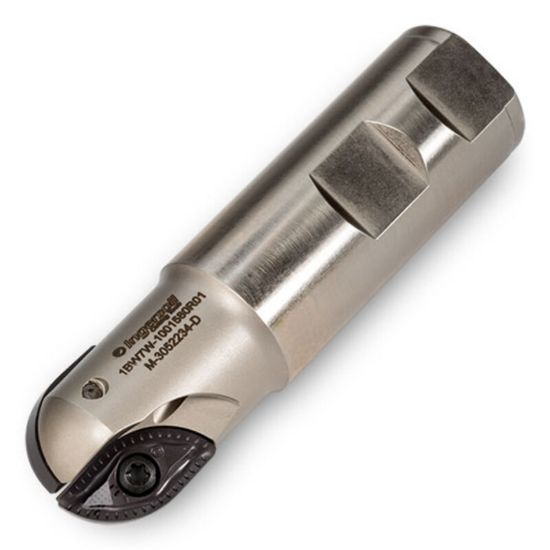

Picture of INGERSOLL 1BW7V-0701584R01 Milling Cutter 0.750 Weldon 0.7500 2 Flute Coolant 0.375 Max DOC 3.500 OAL

INGERSOLL 1BW7V-0701584R01 Milling Cutter 0.750 Weldon 0.7500 2 Flute Coolant 0.375 Max DOC 3.500 OAL

ANSI: 1BW7V-0701584R01

ISO: 1BW7V-0701584R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3029127
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing
Application Copy Milling, Profile Milling
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Tool Material Steel
Insert Size Ic 19
Depth Of Cut Max 0.3750
Flutes/Inserts 2
Overall Len 3.5000 88.90MM
Machine Side Connection Type Weldon
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Style NK
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
