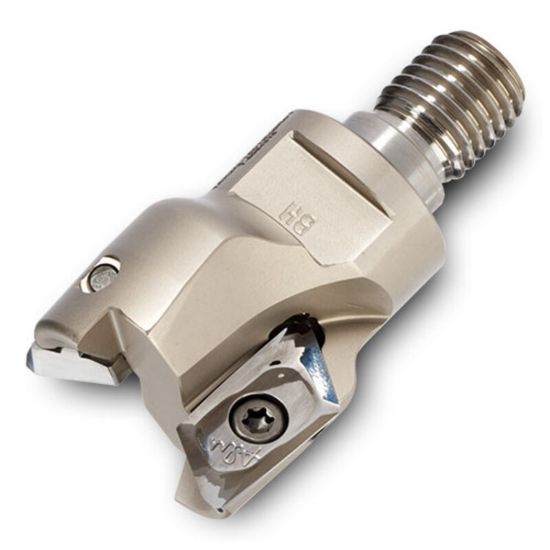

Picture of INGERSOLL 1AX2Q-12017X8R01 Milling Cutter 90.0° 1.250 Screw M16 2 Flute Coolant 0.83 Max DOC

INGERSOLL 1AX2Q-12017X8R01 Milling Cutter 90.0° 1.250 Screw M16 2 Flute Coolant 0.83 Max DOC

ANSI: 1AX2Q-12017X8R01

ISO: 1AX2Q-12017X8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2914651
Delivery date: 3-5 days
$384.53

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing, Roughing
Insert Type Positive
Application Slot Milling, Pocket Milling, Face Milling, Ramp Milling, Side Milling
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Size M16
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Screw On
Tool Material Steel
Insert Size Ic 24
Depth Of Cut Max 0.8300
Flutes/Inserts 2
Cutting & Machining Properties
Insert Style XE
Max Ramp Angle 17.00°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
