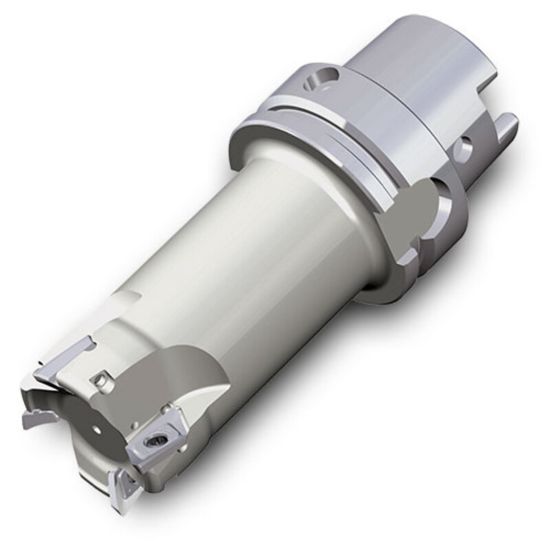

Picture of INGERSOLL 1AX2K-20052H5R01 Milling Cutter 90.0° 2.000 HSK63 3 Flute Coolant 0.63 Max DOC 6.500 OAL

INGERSOLL 1AX2K-20052H5R01 Milling Cutter 90.0° 2.000 HSK63 3 Flute Coolant 0.63 Max DOC 6.500 OAL

ANSI: 1AX2K-20052H5R01

ISO: 1AX2K-20052H5R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2914636
Delivery date: 3-5 days
$1,241.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Ramp Milling, Side Milling, Slot Milling
Insert Application Finishing, Roughing, Semi Finishing
Insert Type Positive
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Insert Size Ic 16
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type HSK
Tool Material Steel
Cut Dia Min 2.0000 50.80MM
Overall Len 6.5000 165.10MM
Flutes/Inserts 3
Depth Of Cut Max 0.6300
Machine Side Connection Size 2.4803 63.00MM
Cutting & Machining Properties
Max Ramp Angle 10.50°
Insert Style XE
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
