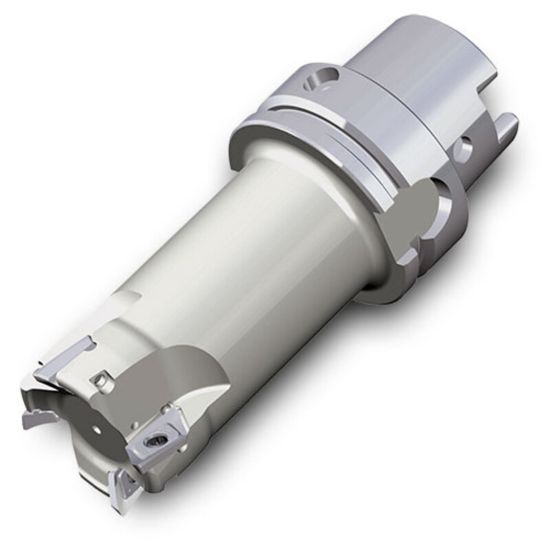

Picture of INGERSOLL 1AX2K-20042HQR01 Milling Cutter 90.0° 2.000 HSK80 3 Flute Coolant 0.63 Max DOC 5.500 OAL

INGERSOLL 1AX2K-20042HQR01 Milling Cutter 90.0° 2.000 HSK80 3 Flute Coolant 0.63 Max DOC 5.500 OAL

ANSI: 1AX2K-20042HQR01

ISO: 1AX2K-20042HQR01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2914639
Delivery date: 3-5 days
$1,222.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing, Roughing
Application Side Milling, Face Milling, Ramp Milling, Slot Milling, Pocket Milling
Insert Type Positive
Package Size 1
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 3.1496 80.00MM
Overall Len 5.5000 139.70MM
Cut Dia Min 2.0000 50.80MM
Flutes/Inserts 3
Depth Of Cut Max 0.6300
Machine Side Connection Type HSK
Insert Size Ic 16
Cutter Dia 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style XE
Coolant Thru Yes
Max Ramp Angle 10.50°
