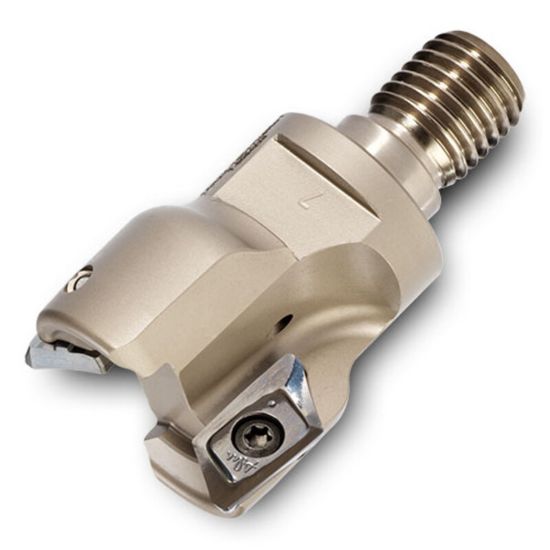

Picture of INGERSOLL 1AX2K-15017X8R02 Milling Cutter 90.0° 1.500 Screw M16 3 Flute Coolant 0.63 Max DOC

INGERSOLL 1AX2K-15017X8R02 Milling Cutter 90.0° 1.500 Screw M16 3 Flute Coolant 0.63 Max DOC

ANSI: 1AX2K-15017X8R02

ISO: 1AX2K-15017X8R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2914629
Delivery date: 3-5 days
$620.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Slot Milling, Face Milling
Shipping State Illinois
Insert Application Semi Finishing, Finishing, Roughing
Insert Type Positive
Made In USA No
Package Size 1
Dimensional Specifications
Machine Side Connection Type Screw On
Tool Material Steel
Insert Size Ic 16
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Size M16
Depth Of Cut Max 0.6300
Cut Dia Min 1.5000 38.10MM - 1-1/2
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Max Ramp Angle 15.50°
Insert Style XE
Coolant Thru Yes
