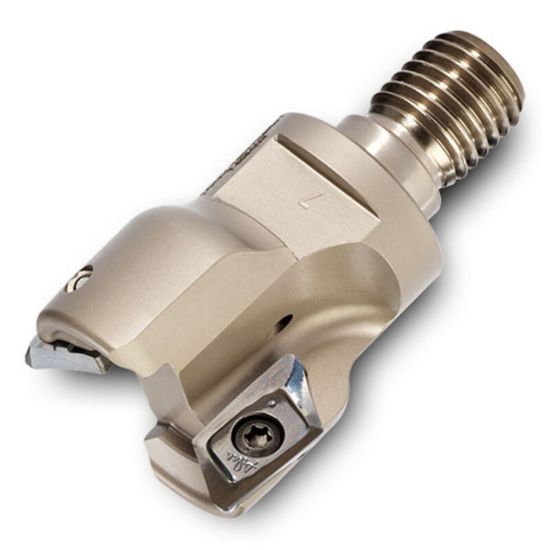

Picture of INGERSOLL 1AX2K-15017X8R01 Milling Cutter 90.0° 1.500 Screw M16 2 Flute Coolant 0.63 Max DOC

INGERSOLL 1AX2K-15017X8R01 Milling Cutter 90.0° 1.500 Screw M16 2 Flute Coolant 0.63 Max DOC

ANSI: 1AX2K-15017X8R01

ISO: 1AX2K-15017X8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2914628
Delivery date: 3-5 days
$587.07

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Machine Side Connection Size M16
Insert Size Ic 16
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Screw On
Depth Of Cut Max 0.6300
Flutes/Inserts 2
Tool Material Steel
Cut Dia Min 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Max Ramp Angle 15.50°
Coolant Thru Yes
Insert Style XE
