  • INGERSOLL 1AX2K-12022S9R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.63 Max DOC 6.000 OAL

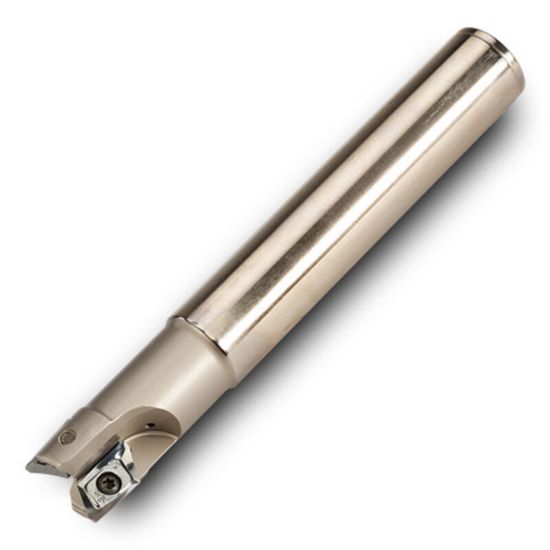

Picture of INGERSOLL 1AX2K-12022S9R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.63 Max DOC 6.000 OAL

INGERSOLL 1AX2K-12022S9R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.63 Max DOC 6.000 OAL

ANSI: 1AX2K-12022S9R01

ISO: 1AX2K-12022S9R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2914621
Delivery date: 3-5 days
$579.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Pocket Milling, Ramp Milling, Slot Milling, Face Milling
Insert/Tool Tool
Shipping State Illinois
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Insert Type Positive
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Cut Dia Min 1.2500 31.75MM - 1-1/4
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Depth Of Cut Max 0.6300
Insert Size Ic 16
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Max Ramp Angle 16.50°
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Insert Style XE
