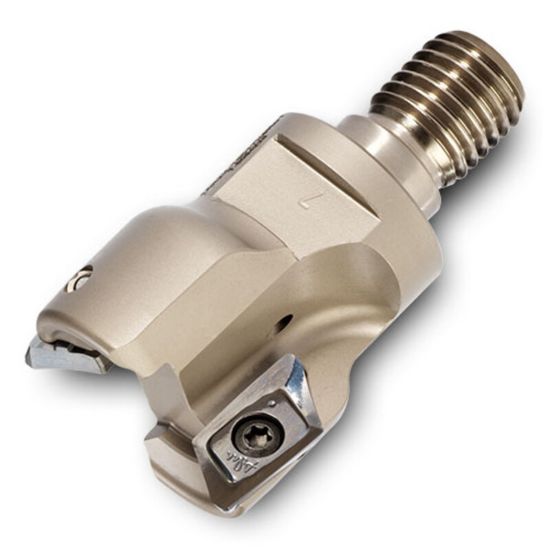

Picture of INGERSOLL 1AX2K-12017X8R01 Milling Cutter 90.0° 1.250 Screw M16 2 Flute Coolant 0.63 Max DOC

INGERSOLL 1AX2K-12017X8R01 Milling Cutter 90.0° 1.250 Screw M16 2 Flute Coolant 0.63 Max DOC

ANSI: 1AX2K-12017X8R01

ISO: 1AX2K-12017X8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2914625
Delivery date: 3-5 days
$540.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing, Finishing
Application Pocket Milling, Face Milling, Side Milling, Ramp Milling, Slot Milling
Shipping State Illinois
Made In USA No
Package Size 1
Insert Type Positive
Dimensional Specifications
Insert Size Ic 16
Cutter Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Depth Of Cut Max 0.6300
Flutes/Inserts 2
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Size M16
Machine Side Connection Type Screw On
Cutting & Machining Properties
Coolant Thru Yes
Insert Style XE
Max Ramp Angle 20.50°
Insert Shape/Cutter Pocket Shape Other
