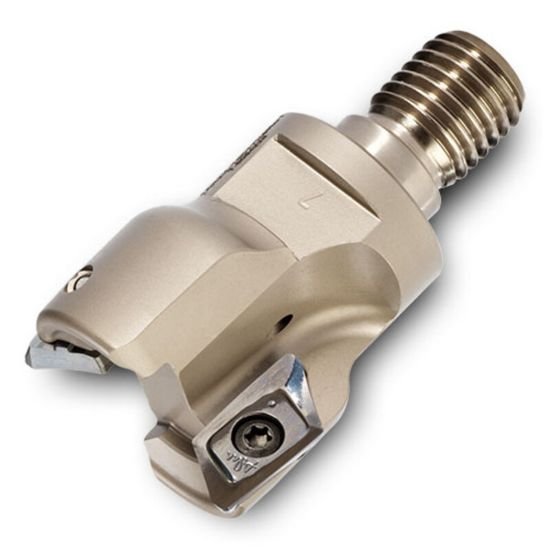

Picture of Ingersoll 1AX2K-12017X8R01 Milling Cutter 90.0° 1.250 ScrewM16 2 Flute Coolant 0.63 Max DOC

Ingersoll 1AX2K-12017X8R01 Milling Cutter 90.0° 1.250 ScrewM16 2 Flute Coolant 0.63 Max DOC

Part Number: ING2914625 ISO: 1AX2K-12017X8R01 ANSI:1AX2K-12017X8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008479
Vendor: Sussex Tool and Supply
$570.50
INGERSOLL 2914625 90.0°, End Mill Thread On SCREWM16 Positive 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size M16
Coolant Thru Thru Coolant
Flutes/Inserts 2
Tool Dia 1.2500 31.75MM - 1-1/4
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style XE
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Insert Size Ic 16
Cut Dia Min 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.6300
Cutting Edge Angle 90.0°
Max Ramp Angle 20.50°
