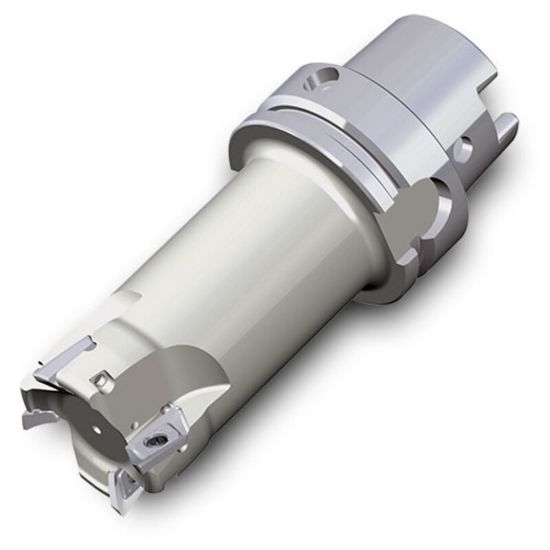

Picture of INGERSOLL 1AX2K-10032HQR01 Milling Cutter 90.0° 1.000 HSK80 2 Flute Coolant 0.63 Max DOC 4.500 OAL

INGERSOLL 1AX2K-10032HQR01 Milling Cutter 90.0° 1.000 HSK80 2 Flute Coolant 0.63 Max DOC 4.500 OAL

ANSI: 1AX2K-10032HQR01

ISO: 1AX2K-10032HQR01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2914637
Delivery date: 3-5 days
$1,054.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Shipping State Illinois
Package Size 1
Insert Application Semi Finishing, Finishing, Roughing
Insert Type Positive
Made In USA No
Dimensional Specifications
Cut Dia Min 1.0000 25.40MM
Machine Side Connection Type HSK
Tool Material Steel
Machine Side Connection Size 3.1496 80.00MM
Depth Of Cut Max 0.6300
Flutes/Inserts 2
Overall Len 4.5000 114.30MM
Insert Size Ic 16
Cutter Dia 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 22.00°
Insert Style XE
Insert Shape/Cutter Pocket Shape Other
