  • INGERSOLL 1A7M-30RE75 Milling Cutter Button Cutter 3.000 Shell Arbor 1.0000 5 Flute Coolant 0.375 Max DOC 1.980 OAL

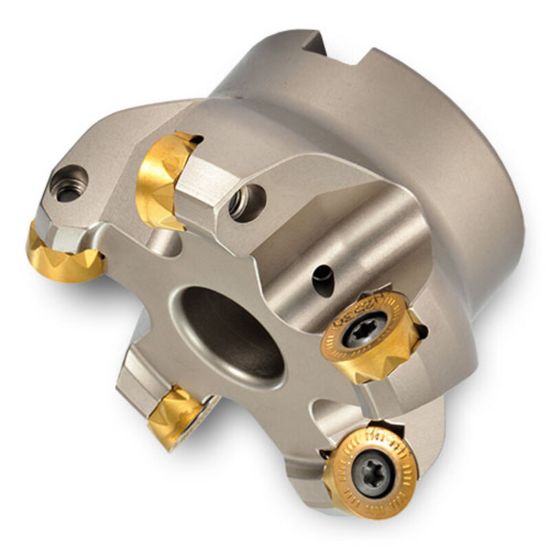

Picture of INGERSOLL 1A7M-30RE75 Milling Cutter Button Cutter 3.000 Shell Arbor 1.0000 5 Flute Coolant 0.375 Max DOC 1.980 OAL

INGERSOLL 1A7M-30RE75 Milling Cutter Button Cutter 3.000 Shell Arbor 1.0000 5 Flute Coolant 0.375 Max DOC 1.980 OAL

ANSI: 1A7M-30RE75

ISO: 1A7M-30RE75

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2915795
Delivery date: 3-5 days
$875.47

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Ramp Milling, Face Milling, Pocket Milling
Insert/Tool Tool
Insert Type Positive
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 19
Depth Of Cut Max 0.3750
Cutter Dia 3.0000 76.20MM
Cut Dia Max 3.0000 76.20MM
Tool Material Steel
Overall Len 1.9800 50.29MM
Flutes/Inserts 5
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Min 2.2570 57.33MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Insert Style RJ
Max Ramp Angle 7.00°
