  • INGERSOLL 1A7K-30R01 Milling Cutter Button Cutter 3.000 Shell Arbor 1.0000 5 Flute Coolant 0.315 Max DOC 1.750 OAL

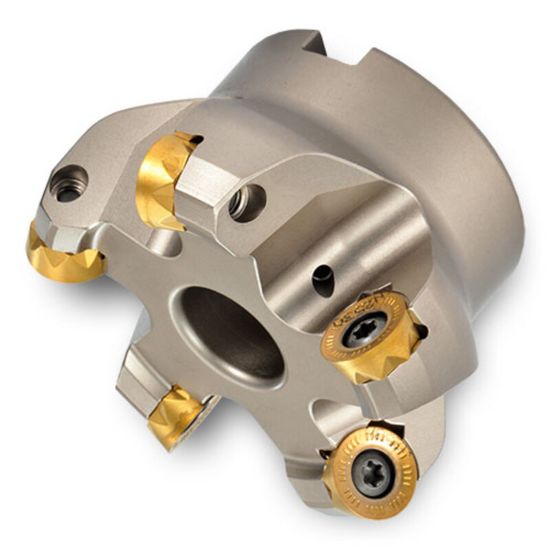

Picture of INGERSOLL 1A7K-30R01 Milling Cutter Button Cutter 3.000 Shell Arbor 1.0000 5 Flute Coolant 0.315 Max DOC 1.750 OAL

INGERSOLL 1A7K-30R01 Milling Cutter Button Cutter 3.000 Shell Arbor 1.0000 5 Flute Coolant 0.315 Max DOC 1.750 OAL

ANSI: 1A7K-30R01

ISO: 1A7K-30R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3032526
Delivery date: 3-5 days
$827.87

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ramp Milling, Face Milling, Round Milling, Pocket Milling
Insert Application Semi Finishing, Roughing
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 3.0000 76.20MM
Insert Size Ic 16
Machine Side Connection Size 1.0000 25.40MM
Depth Of Cut Max 0.3150
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cut Dia Max 3.0000 76.20MM
Flutes/Inserts 5
Cut Dia Min 2.3730 60.27MM
Overall Len 1.7500 44.45MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Max Ramp Angle 5.00°
Coolant Thru Yes
Insert Style RJ
