  • INGERSOLL 1A7H-40RE50 Milling Cutter Button Cutter 4.000 Shell Arbor 1.5000 7 Flute Coolant 0.25 Max DOC 2.500 OAL

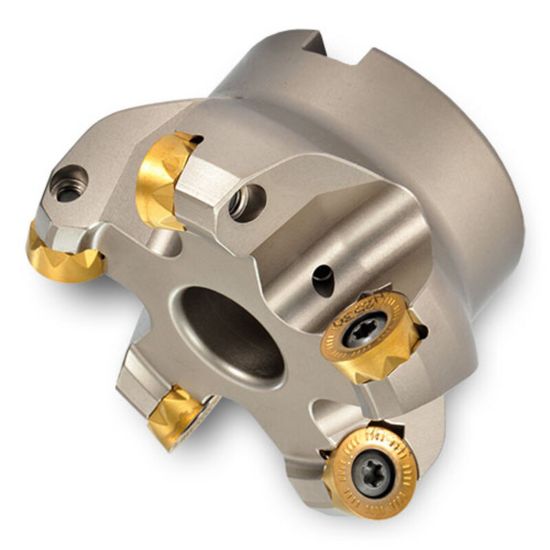

Picture of INGERSOLL 1A7H-40RE50 Milling Cutter Button Cutter 4.000 Shell Arbor 1.5000 7 Flute Coolant 0.25 Max DOC 2.500 OAL

INGERSOLL 1A7H-40RE50 Milling Cutter Button Cutter 4.000 Shell Arbor 1.5000 7 Flute Coolant 0.25 Max DOC 2.500 OAL

ANSI: 1A7H-40RE50

ISO: 1A7H-40RE50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2915794
Delivery date: 3-5 days
$1,036.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Application Face Milling, Round Milling, Ramp Milling, Pocket Milling
Package Size 1
Made In USA No
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.2500
Insert Size Ic 13
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 7
Cut Dia Min 3.5010 88.93MM
Cut Dia Max 4.0000 101.60MM
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 4.0000 101.60MM
Overall Len 2.5000 63.50MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Insert Style RJ
Max Ramp Angle 2.50°
