  • INGERSOLL 1A7H-30RE50 Milling Cutter Button Cutter 3.000 Shell Arbor 1.0000 6 Flute Coolant 0.25 Max DOC 1.750 OAL

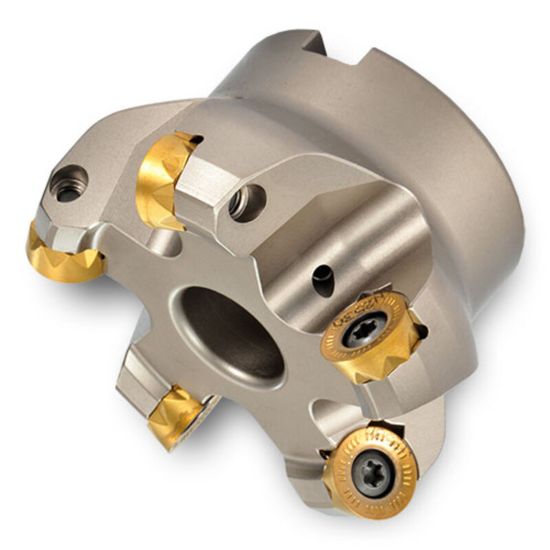

Picture of INGERSOLL 1A7H-30RE50 Milling Cutter Button Cutter 3.000 Shell Arbor 1.0000 6 Flute Coolant 0.25 Max DOC 1.750 OAL

INGERSOLL 1A7H-30RE50 Milling Cutter Button Cutter 3.000 Shell Arbor 1.0000 6 Flute Coolant 0.25 Max DOC 1.750 OAL

ANSI: 1A7H-30RE50

ISO: 1A7H-30RE50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2915793
Delivery date: 3-5 days
$924.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Insert/Tool Tool
Application Pocket Milling, Face Milling, Round Milling, Ramp Milling
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Flutes/Inserts 6
Cutter Dia 3.0000 76.20MM
Depth Of Cut Max 0.2500
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Max 3.0000 76.20MM
Tool Material Steel
Insert Size Ic 13
Cut Dia Min 2.5020 63.55MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 1.7500 44.45MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Coolant Thru Yes
Max Ramp Angle 4.00°
Insert Style RJ
