  • INGERSOLL 1A7H-20RE50 Milling Cutter Button Cutter 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.25 Max DOC 1.570 OAL

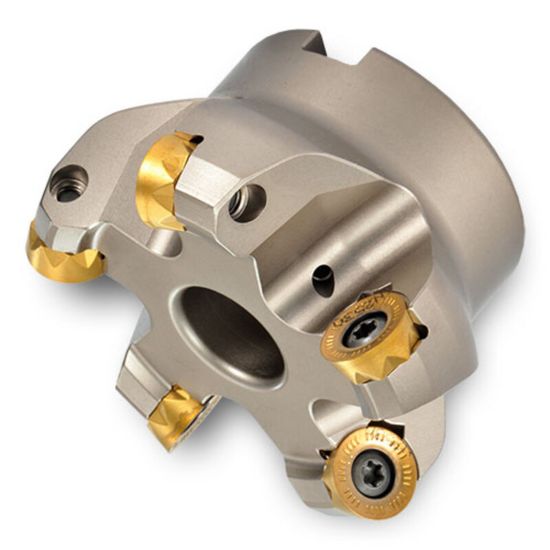

Picture of INGERSOLL 1A7H-20RE50 Milling Cutter Button Cutter 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.25 Max DOC 1.570 OAL

INGERSOLL 1A7H-20RE50 Milling Cutter Button Cutter 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.25 Max DOC 1.570 OAL

ANSI: 1A7H-20RE50

ISO: 1A7H-20RE50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2915792
Delivery date: 3-5 days
$688.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Round Milling, Pocket Milling, Ramp Milling
Insert Application Semi Finishing, Roughing
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 2.0000 50.80MM
Cut Dia Min 1.5060 38.25MM
Insert Size Ic 13
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Flutes/Inserts 5
Depth Of Cut Max 0.2500
Cut Dia Max 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Max Ramp Angle 6.00°
Coolant Thru Yes
Insert Style RJ
