  • INGERSOLL 19N1A-1501181R01 Milling Cutter 45.0° 1.500 Cylindrical 1.2500 4 Flute 0.31 Max DOC 3.380 OAL

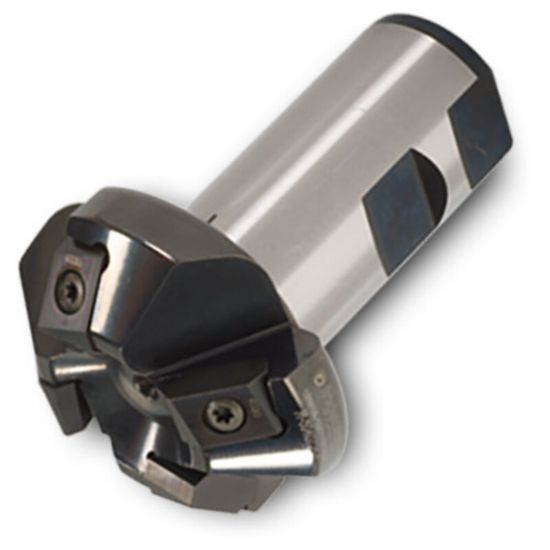

Picture of INGERSOLL 19N1A-1501181R01 Milling Cutter 45.0° 1.500 Cylindrical 1.2500 4 Flute 0.31 Max DOC 3.380 OAL

INGERSOLL 19N1A-1501181R01 Milling Cutter 45.0° 1.500 Cylindrical 1.2500 4 Flute 0.31 Max DOC 3.380 OAL

ANSI: 19N1A-1501181R01

ISO: 19N1A-1501181R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2907290
Delivery date: 3-5 days
$564.67

Details

CHAMFER MILL FOR HEAVY CUTTING, ON EDGE TECHNOLOGY GIVES IT GREAT STRENGTH.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Chamfering
Dimensional Specifications
Flutes/Inserts 4
Depth Of Cut Max 0.3100
Machine Side Connection Size 1.2500 31.75MM
Tool Material Steel
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 3.3800 85.85MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Insert Size Ic 32
Cut Dia Min 1.5000 38.10MM - 1-1/2
Cut Dia Max 2.1200 53.85MM
Cutting & Machining Properties
Coolant Thru No
Insert Style LS
Insert Shape/Cutter Pocket Shape Other
