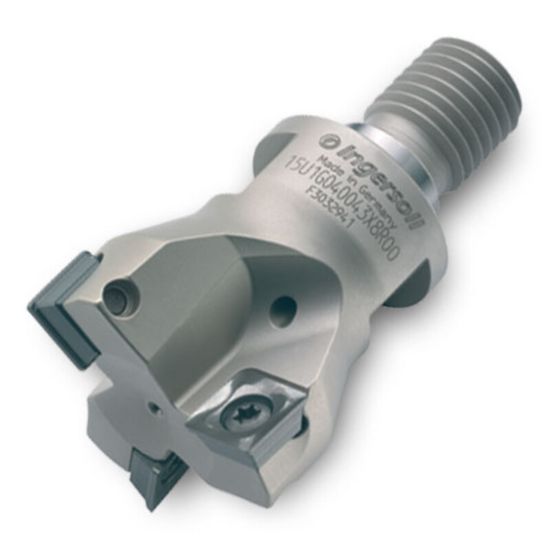

Picture of INGERSOLL 15U1G-15017X8R01 Milling Cutter 90.0° 1.500 Screw M16 3 Flute Coolant 0.41 Max DOC

INGERSOLL 15U1G-15017X8R01 Milling Cutter 90.0° 1.500 Screw M16 3 Flute Coolant 0.41 Max DOC

ANSI: 15U1G-15017X8R01

ISO: 15U1G-15017X8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3022751
Delivery date: 3-5 days
$432.13

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Insert Type Positive
Insert/Tool Tool
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 11
Cut Dia Min 1.5000 38.10MM - 1-1/2
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Screw On
Flutes/Inserts 3
Tool Material Steel
Depth Of Cut Max 0.4100
Machine Side Connection Size M16
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Coolant Thru Yes
Max Ramp Angle 4.00°
Insert Style SH
