  • INGERSOLL 15U1G-1202281R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.41 Max DOC 4.500 OAL

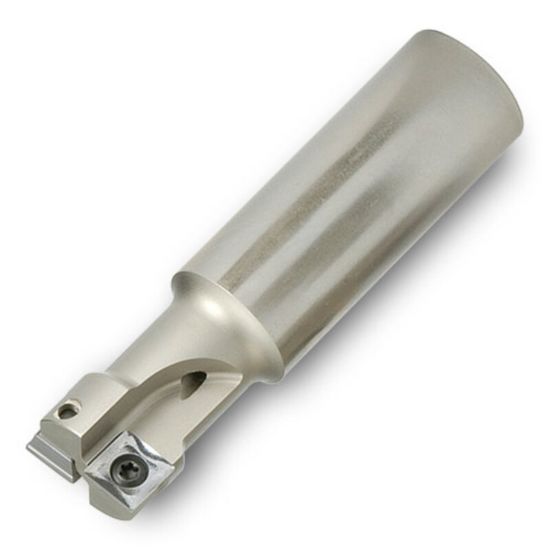

Picture of INGERSOLL 15U1G-1202281R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.41 Max DOC 4.500 OAL

INGERSOLL 15U1G-1202281R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.41 Max DOC 4.500 OAL

ANSI: 15U1G-1202281R01

ISO: 15U1G-1202281R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3022736
Delivery date: 3-5 days
$410.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Shipping State Illinois
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 11
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Cutter Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Depth Of Cut Max 0.4100
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Cutting & Machining Properties
Insert Style SH
Insert Shape/Cutter Pocket Shape Square
Max Ramp Angle 6.00°
Coolant Thru Yes
