  • INGERSOLL 15U1G-1001780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.41 Max DOC 4.000 OAL

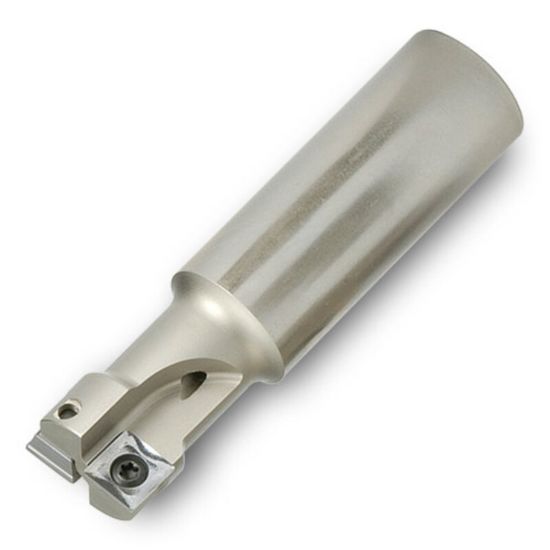

Picture of INGERSOLL 15U1G-1001780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.41 Max DOC 4.000 OAL

INGERSOLL 15U1G-1001780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.41 Max DOC 4.000 OAL

ANSI: 15U1G-1001780R01

ISO: 15U1G-1001780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3022737
Delivery date: 3-5 days
$390.13

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Pocket Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Insert Size Ic 11
Overall Len 4.0000 101.60MM
Flutes/Inserts 2
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Depth Of Cut Max 0.4100
Cutting & Machining Properties
Max Ramp Angle 2.00°
Insert Style SH
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
