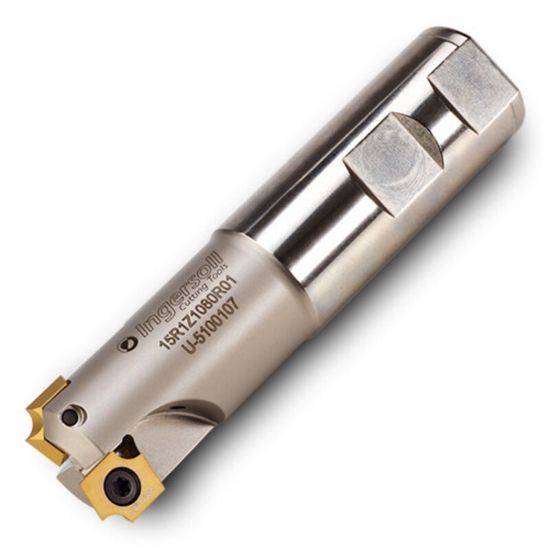

Picture of INGERSOLL 15R1V-1002080R01 Milling Cutter 1.000 Weldon 1.0000 2 Flute Coolant 1.9 Max DOC 4.250 OAL

INGERSOLL 15R1V-1002080R01 Milling Cutter 1.000 Weldon 1.0000 2 Flute Coolant 1.9 Max DOC 4.250 OAL

ANSI: 15R1V-1002080R01

ISO: 15R1V-1002080R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3012282
Delivery date: 3-5 days
$322.93

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert/Tool Tool
Application Corner RoundIng
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Size 1.0000 25.40MM
Depth Of Cut Max 1.9000
Insert Size Ic 12
Overall Len 4.2500 107.95MM
Flutes/Inserts 2
Machine Side Connection Type Weldon
Tool Material Steel
Cutting & Machining Properties
Insert Style BE
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
