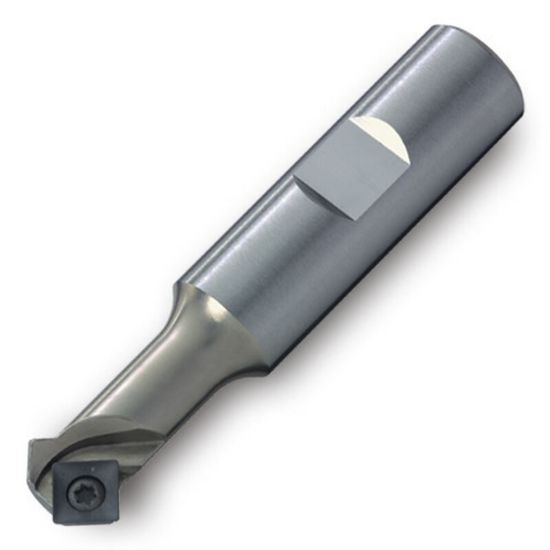

Picture of INGERSOLL 15P1E-0201584R01 Milling Cutter 45.0° 0.531 Weldon 0.7500 1 Flute 0.24 Max DOC 3.500 OAL

INGERSOLL 15P1E-0201584R01 Milling Cutter 45.0° 0.531 Weldon 0.7500 1 Flute 0.24 Max DOC 3.500 OAL

ANSI: 15P1E-0201584R01

ISO: 15P1E-0201584R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3012752
Delivery date: 3-5 days
$186.67

Details

CHAMFER MILL FOR FRONT AND BACK SIDE APPLICATIONS. 4 CORNER INSERT GREAT COST EFFECTIVNESS.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Chamfering, Back Chamfering
Insert Type Positive
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Dia Min 0.2420 6.15MM - C
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 9
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.2400
Cut Dia Max 0.5310 13.49MM
Overall Len 3.5000 88.90MM
Flutes/Inserts 1
Cutter Dia 0.5310 13.49MM
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Coolant Thru No
Insert Style SD
