  • INGERSOLL 15N1H-0802286R01 Milling Cutter 45.0° 0.875 Cylindrical 1.5000 2 Flute 0.69 Max DOC 4.910 OAL

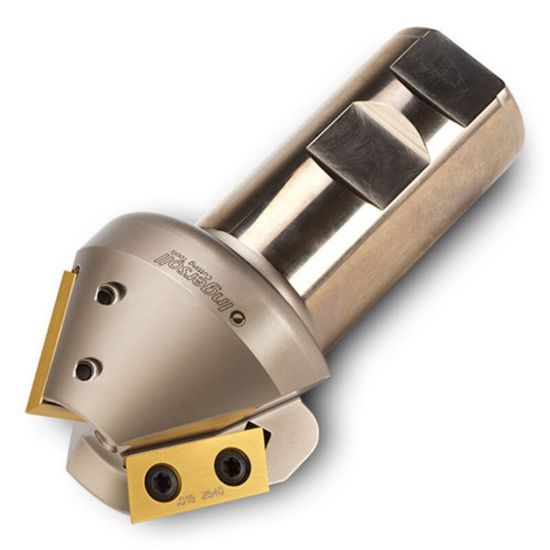

Picture of INGERSOLL 15N1H-0802286R01 Milling Cutter 45.0° 0.875 Cylindrical 1.5000 2 Flute 0.69 Max DOC 4.910 OAL

INGERSOLL 15N1H-0802286R01 Milling Cutter 45.0° 0.875 Cylindrical 1.5000 2 Flute 0.69 Max DOC 4.910 OAL

ANSI: 15N1H-0802286R01

ISO: 15N1H-0802286R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3007475
Delivery date: 3-5 days
$353.73

Details

LONG ENDGE CHAMFER MILL, 2 SCREWL GREAT SIDE WALL FINISH.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Chamfering, Long Edge Chamfering
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Insert Type Positive
Made In USA No
Dimensional Specifications
Cut Dia Min 0.8750 22.23MM - 7/8
Machine Side Connection Size 1.5000 38.10MM
Depth Of Cut Max 0.6900
Insert Size Ic 25
Cutter Dia 0.8750 22.23MM - 7/8
Tool Material Steel
Cut Dia Max 2.2700 57.66MM
Machine Side Connection Type Cylindrical
Overall Len 4.9100 124.71MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BE
