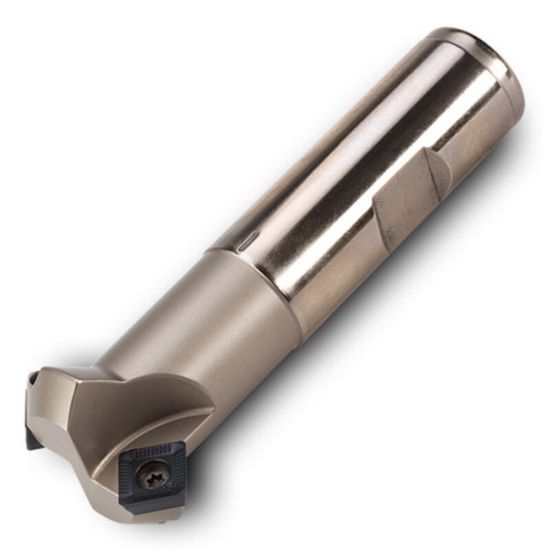

Picture of INGERSOLL 15N1F-1001584R01 Milling Cutter 45.0° 1.000 Weldon 0.7500 1 Flute 0.23 Max DOC 3.500 OAL

INGERSOLL 15N1F-1001584R01 Milling Cutter 45.0° 1.000 Weldon 0.7500 1 Flute 0.23 Max DOC 3.500 OAL

ANSI: 15N1F-1001584R01

ISO: 15N1F-1001584R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3010303
Delivery date: 3-5 days
$231.47

Details

CHAMFER MILL FOR FRONT AND BACK SIDE APPLICATIONS. 4 CORNER INSERT GREAT COST EFFECTIVNESS.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Chamfering, Back Chamfering
Insert Type Positive
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.2300
Flutes/Inserts 1
Machine Side Connection Type Weldon
Cut Dia Max 1.0000 25.40MM
Overall Len 3.5000 88.90MM
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Cut Dia Min 0.5000 12.70MM - 1/2
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 9
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Style SH
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
