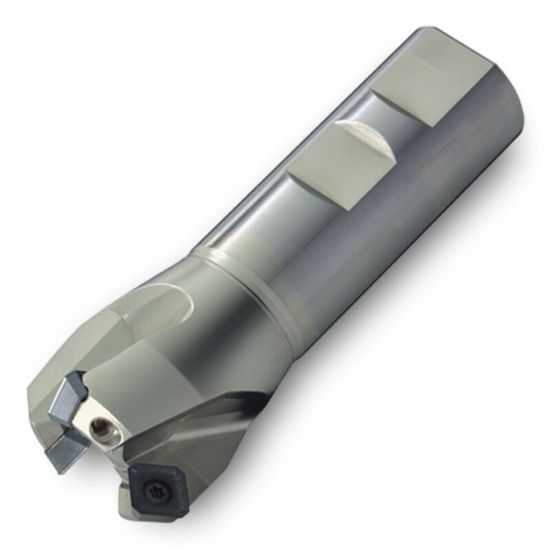

Picture of INGERSOLL 15N1F-0701584R00 Milling Cutter 45.0° 0.750 Weldon 0.7500 2 Flute 0.18 Max DOC 3.500 OAL

INGERSOLL 15N1F-0701584R00 Milling Cutter 45.0° 0.750 Weldon 0.7500 2 Flute 0.18 Max DOC 3.500 OAL

ANSI: 15N1F-0701584R00

ISO: 15N1F-0701584R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3012759
Delivery date: 3-5 days
$188.53

Details

CHAMFER MILL FOR SE TYPE INSERT. VERY FREE CUTTING AND VERY POSITIVE. GREAT IN SOFT MATERIALS.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Application Chamfering
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Insert Size Ic 9
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Type Weldon
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.1800
Overall Len 3.5000 88.90MM
Cut Dia Max 1.1300 28.70MM
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Insert Style SE
