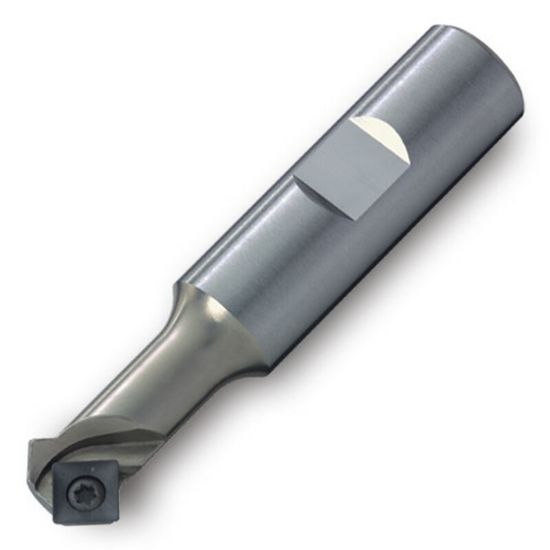

Picture of INGERSOLL 15N1E-0201584R01 Milling Cutter 45.0° 0.655 Weldon 0.7500 1 Flute 0.2 Max DOC 3.500 OAL

INGERSOLL 15N1E-0201584R01 Milling Cutter 45.0° 0.655 Weldon 0.7500 1 Flute 0.2 Max DOC 3.500 OAL

ANSI: 15N1E-0201584R01

ISO: 15N1E-0201584R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3012751
Delivery date: 3-5 days
$186.67

Details

CHAMFER MILL FOR FRONT AND BACK SIDE APPLICATIONS. 4 CORNER INSERT GREAT COST EFFECTIVNESS.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Made In USA No
Insert Application General Purpose
Shipping State Illinois
Application Back Chamfering, Chamfering
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Flutes/Inserts 1
Cut Dia Max 0.6550 16.64MM
Overall Len 3.5000 88.90MM
Depth Of Cut Max 0.2000
Cutter Dia 0.6550 16.64MM
Insert Size Ic 8
Tool Material Steel
Cut Dia Min 0.2500 6.35MM - 1/4 - E
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Weldon
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Insert Style SD
