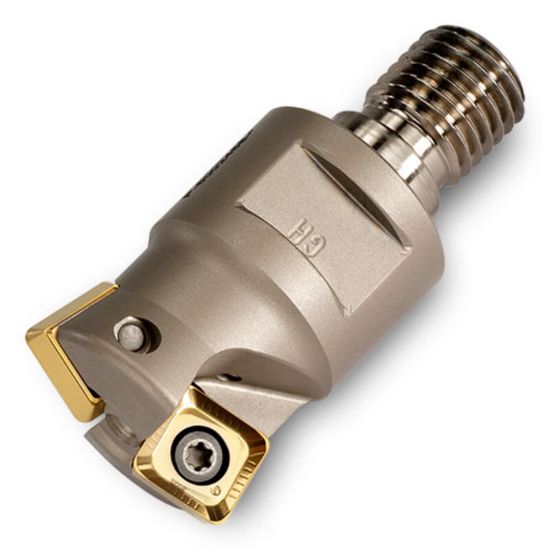

Picture of INGERSOLL 15M1P032043X8R00 Milling Cutter 1.260 Screw M16 2 Flute Coolant 0.0882 Max DOC

INGERSOLL 15M1P032043X8R00 Milling Cutter 1.260 Screw M16 2 Flute Coolant 0.0882 Max DOC

ANSI: 15M1P032043X8R00

ISO: 15M1P032043X8R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2901982
Delivery date: 3-5 days
$409.73

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Copy Milling, Feed Milling, Ramp Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Insert Application Roughing
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 1.2560 31.90MM
Insert Size Ic 13
Machine Side Connection Type Screw On
Cut Dia Min 0.4310 10.95MM
Tool Material Steel
Depth Of Cut Max 0.0882
Flutes/Inserts 2
Cutter Dia 1.2600 32.00MM
Machine Side Connection Size M16
Cutting & Machining Properties
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
Coolant Thru Yes
Max Ramp Angle 5.00°
