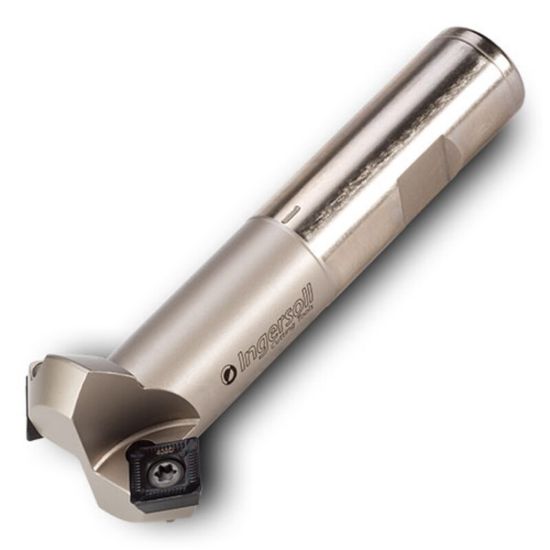

Picture of INGERSOLL 15L1G-1502084R01 Milling Cutter 75.0° 1.500 Weldon 0.7500 2 Flute 0.39 Max DOC 4.000 OAL

INGERSOLL 15L1G-1502084R01 Milling Cutter 75.0° 1.500 Weldon 0.7500 2 Flute 0.39 Max DOC 4.000 OAL

ANSI: 15L1G-1502084R01

ISO: 15L1G-1502084R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3009633
Delivery date: 3-5 days
$312.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Chamfering
Dimensional Specifications
Insert Size Ic 11
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Depth Of Cut Max 0.3900
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Min 1.3000 33.02MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SH
Coolant Thru No
