  • INGERSOLL 15J1E-1003580R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.31 Max DOC 5.750 OAL

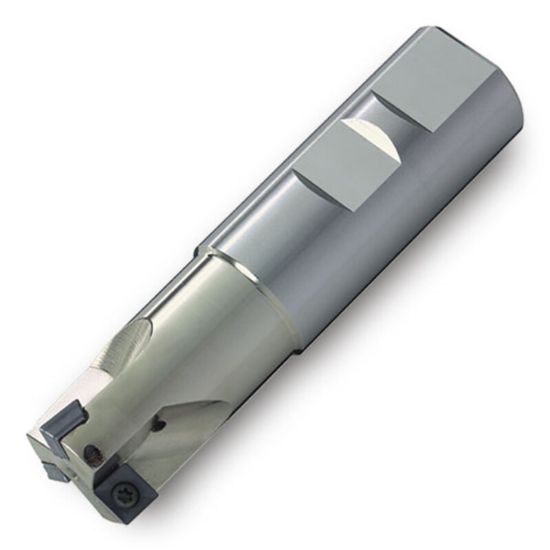

Picture of INGERSOLL 15J1E-1003580R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.31 Max DOC 5.750 OAL

INGERSOLL 15J1E-1003580R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.31 Max DOC 5.750 OAL

ANSI: 15J1E-1003580R01

ISO: 15J1E-1003580R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3012733
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Insert/Tool Tool
Application Side Milling, Face Milling
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Depth Of Cut Max 0.3100
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 8
Cutter Dia 1.0000 25.40MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Overall Len 5.7500 146.05MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style SD
Max Ramp Angle 1.50°
Insert Shape/Cutter Pocket Shape Square
