  • INGERSOLL 15J1E-0701784R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.31 Max DOC 3.750 OAL

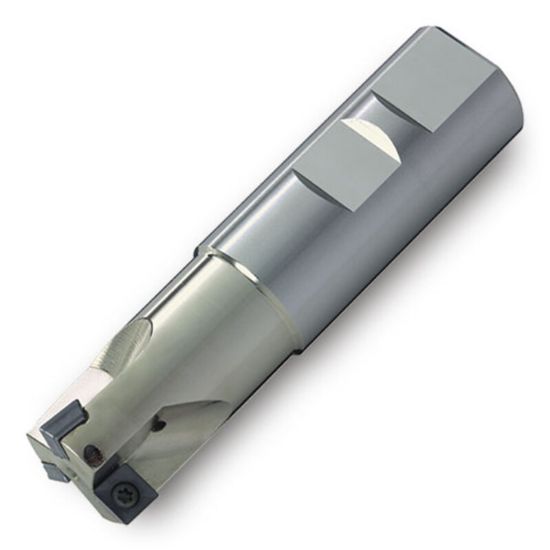

Picture of INGERSOLL 15J1E-0701784R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.31 Max DOC 3.750 OAL

INGERSOLL 15J1E-0701784R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.31 Max DOC 3.750 OAL

ANSI: 15J1E-0701784R01

ISO: 15J1E-0701784R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3017064
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Side Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 8
Depth Of Cut Max 0.3100
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 2
Cutting & Machining Properties
Max Ramp Angle 2.50°
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
Coolant Thru Yes
