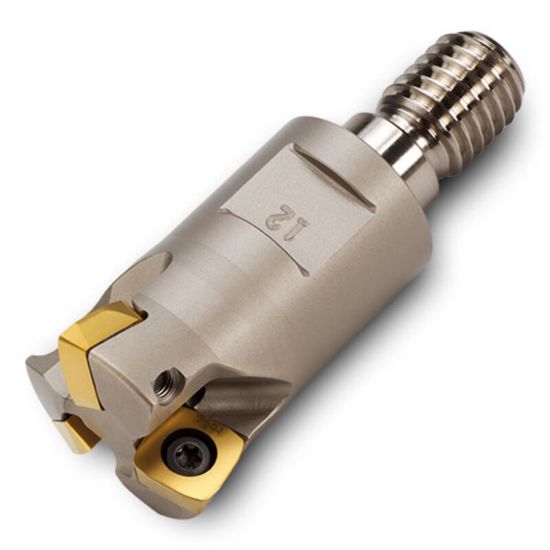

Picture of INGERSOLL 15G1F-10015X7R01 Milling Cutter 1.000 Screw M12 3 Flute Coolant 0.06 Max DOC

INGERSOLL 15G1F-10015X7R01 Milling Cutter 1.000 Screw M12 3 Flute Coolant 0.06 Max DOC

ANSI: 15G1F-10015X7R01

ISO: 15G1F-10015X7R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2912642
Delivery date: 3-5 days
$376.13

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Copy Milling, Feed Milling, Face Milling
Made In USA No
Shipping State Illinois
Insert Application Roughing
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Cut Dia Min 0.5240 13.31MM
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Size M12
Cutter Dia 1.0000 25.40MM
Machine Side Connection Type Screw On
Flutes/Inserts 3
Depth Of Cut Max 0.0600
Tool Material Steel
Insert Size Ic 9
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Max Ramp Angle 5.50°
Coolant Thru Yes
Insert Style SD
