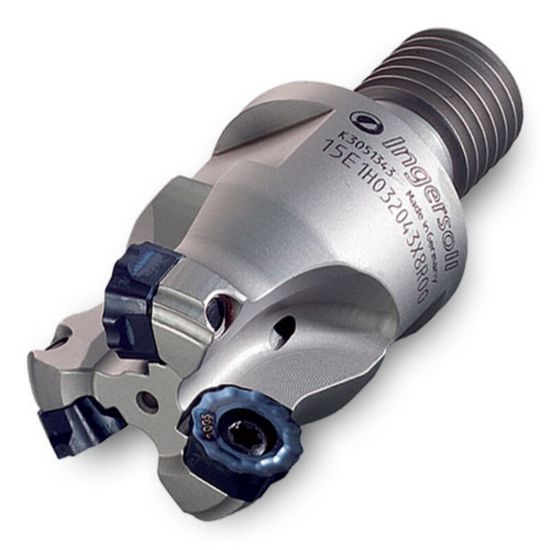

Picture of INGERSOLL 15E1K-15017X8R01 Milling Cutter Button Cutter 1.500 Screw M16 3 Flute 0.315 Max DOC

INGERSOLL 15E1K-15017X8R01 Milling Cutter Button Cutter 1.500 Screw M16 3 Flute 0.315 Max DOC

ANSI: 15E1K-15017X8R01

ISO: 15E1K-15017X8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3019984
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Face Milling, Pocket Milling, Round Milling, Ramp Milling
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Cut Dia Min 0.8700 22.10MM
Tool Material Steel
Flutes/Inserts 3
Depth Of Cut Max 0.3150
Machine Side Connection Size M16
Insert Size Ic 16
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Screw On
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Coolant Thru No
Insert Style RC
