  • INGERSOLL 15B8E-10020S1R01 Milling Cutter Button Cutter 1.000 Cylindrical 1.0000 4 Flute Coolant 0.1575 Max DOC 6.000 OAL

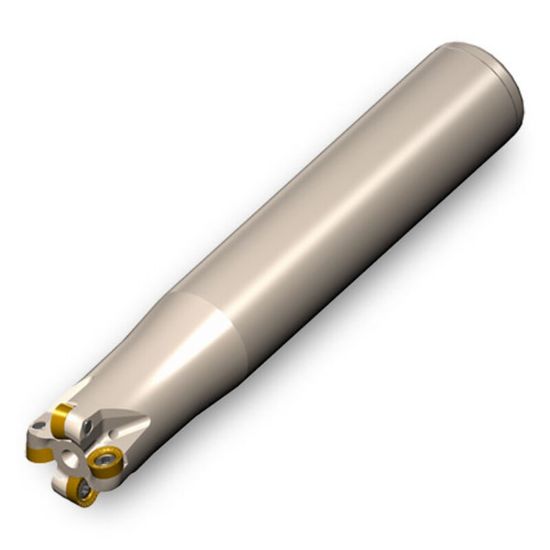

Picture of INGERSOLL 15B8E-10020S1R01 Milling Cutter Button Cutter 1.000 Cylindrical 1.0000 4 Flute Coolant 0.1575 Max DOC 6.000 OAL

INGERSOLL 15B8E-10020S1R01 Milling Cutter Button Cutter 1.000 Cylindrical 1.0000 4 Flute Coolant 0.1575 Max DOC 6.000 OAL

ANSI: 15B8E-10020S1R01

ISO: 15B8E-10020S1R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2919117
Delivery date: 3-5 days
$291.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Ramp Milling, Pocket Milling, Round Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Insert Size Ic 8
Cutter Dia 1.0000 25.40MM
Depth Of Cut Max 0.1575
Overall Len 6.0000 152.40MM
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Cut Dia Min 0.6860 17.42MM
Flutes/Inserts 4
Cutting & Machining Properties
Insert Style RJ
Insert Shape/Cutter Pocket Shape Round
Coolant Thru Yes
Max Ramp Angle 6.00°
