  • INGERSOLL 15B8E-10013X7R01 Milling Cutter Button Cutter 1.000 Screw M12 4 Flute Coolant 0.1575 Max DOC

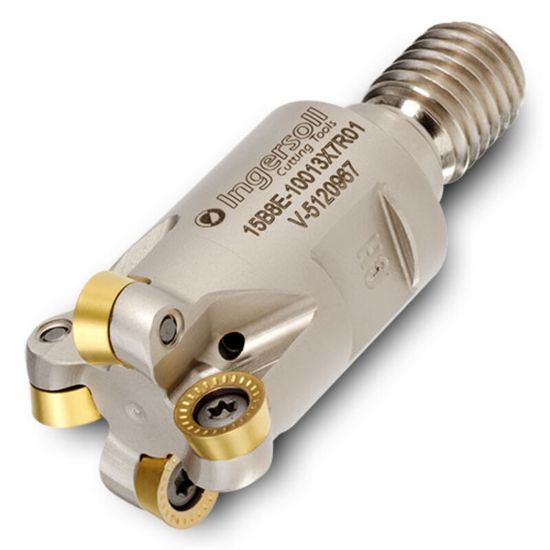

Picture of INGERSOLL 15B8E-10013X7R01 Milling Cutter Button Cutter 1.000 Screw M12 4 Flute Coolant 0.1575 Max DOC

INGERSOLL 15B8E-10013X7R01 Milling Cutter Button Cutter 1.000 Screw M12 4 Flute Coolant 0.1575 Max DOC

ANSI: 15B8E-10013X7R01

ISO: 15B8E-10013X7R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2919056
Delivery date: 3-5 days
$291.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Application Round Milling, Face Milling, Ramp Milling, Pocket Milling
Insert Type Positive
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 4
Cut Dia Min 0.6860 17.42MM
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Cut Dia Max 1.0000 25.40MM
Depth Of Cut Max 0.1575
Insert Size Ic 8
Cutter Dia 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 6.00°
Insert Shape/Cutter Pocket Shape Round
Insert Style RJ
