  • INGERSOLL 15B4M-15035S5R01 Milling Cutter Button Cutter 1.500 Cylindrical 1.5000 2 Flute 0.375 Max DOC 7.500 OAL

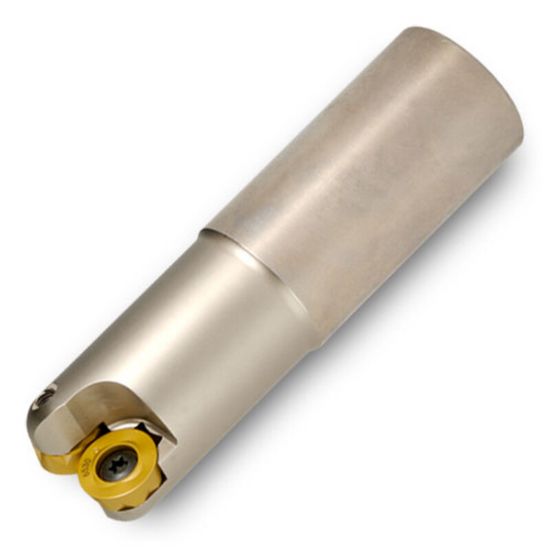

Picture of INGERSOLL 15B4M-15035S5R01 Milling Cutter Button Cutter 1.500 Cylindrical 1.5000 2 Flute 0.375 Max DOC 7.500 OAL

INGERSOLL 15B4M-15035S5R01 Milling Cutter Button Cutter 1.500 Cylindrical 1.5000 2 Flute 0.375 Max DOC 7.500 OAL

ANSI: 15B4M-15035S5R01

ISO: 15B4M-15035S5R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027859
Delivery date: 3-5 days
$434.93

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Pocket Milling, Face Milling, Round Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Overall Len 7.5000 190.50MM
Tool Material Steel
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.3750
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 2
Cutting & Machining Properties
Max Ramp Angle 1.60°
Insert Shape/Cutter Pocket Shape Round
Coolant Thru No
