  • INGERSOLL 15B4H-15020S5RE50 Milling Cutter Button Cutter 1.500 Cylindrical 1.5000 4 Flute Coolant 0.25 Max DOC 6.000 OAL

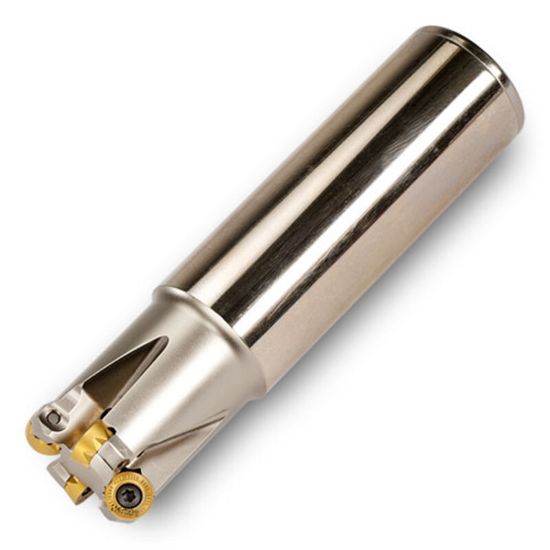

Picture of INGERSOLL 15B4H-15020S5RE50 Milling Cutter Button Cutter 1.500 Cylindrical 1.5000 4 Flute Coolant 0.25 Max DOC 6.000 OAL

INGERSOLL 15B4H-15020S5RE50 Milling Cutter Button Cutter 1.500 Cylindrical 1.5000 4 Flute Coolant 0.25 Max DOC 6.000 OAL

ANSI: 15B4H-15020S5RE50

ISO: 15B4H-15020S5RE50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2915243
Delivery date: 3-5 days
$463.87

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Ramp Milling, Face Milling, Pocket Milling, Round Milling
Insert Type Positive
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Made In USA No
Dimensional Specifications
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Overall Len 6.0000 152.40MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 13
Machine Side Connection Size 1.5000 38.10MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Flutes/Inserts 4
Depth Of Cut Max 0.2500
Cut Dia Max 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Coolant Thru Yes
Insert Style RJ
Max Ramp Angle 6.50°
