  • INGERSOLL 15B4H-15015X8RE50 Milling Cutter Button Cutter 1.500 Screw M16 3 Flute Coolant 0.25 Max DOC

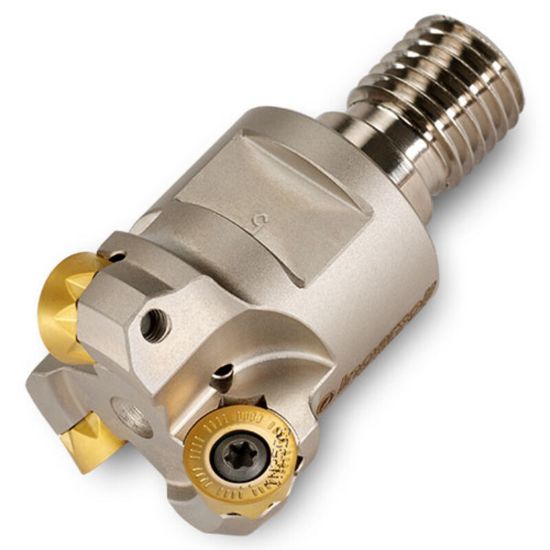

Picture of INGERSOLL 15B4H-15015X8RE50 Milling Cutter Button Cutter 1.500 Screw M16 3 Flute Coolant 0.25 Max DOC

INGERSOLL 15B4H-15015X8RE50 Milling Cutter Button Cutter 1.500 Screw M16 3 Flute Coolant 0.25 Max DOC

ANSI: 15B4H-15015X8RE50

ISO: 15B4H-15015X8RE50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2915236
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Pocket Milling, Ramp Milling, Round Milling
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Depth Of Cut Max 0.2500
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Screw On
Machine Side Connection Size M16
Flutes/Inserts 3
Insert Size Ic 13
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Insert Style RJ
Coolant Thru Yes
Max Ramp Angle 6.50°
