  • INGERSOLL 15B4H-1202781RE50 Milling Cutter Button Cutter 1.250 Cylindrical 1.0000 3 Flute Coolant 0.25 Max DOC 5.000 OAL

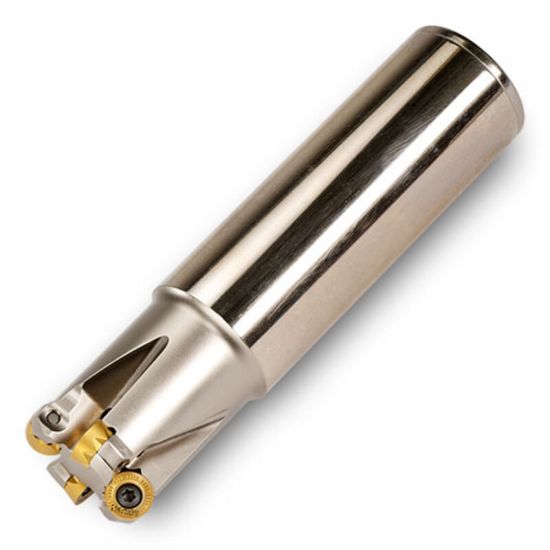

Picture of INGERSOLL 15B4H-1202781RE50 Milling Cutter Button Cutter 1.250 Cylindrical 1.0000 3 Flute Coolant 0.25 Max DOC 5.000 OAL

INGERSOLL 15B4H-1202781RE50 Milling Cutter Button Cutter 1.250 Cylindrical 1.0000 3 Flute Coolant 0.25 Max DOC 5.000 OAL

ANSI: 15B4H-1202781RE50

ISO: 15B4H-1202781RE50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2915281
Delivery date: 3-5 days
$396.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Face Milling, Round Milling
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.2500
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Cylindrical
Overall Len 5.0000 127.00MM
Insert Size Ic 13
Cut Dia Min 0.7500 19.05MM - 3/4
Cut Dia Max 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Insert Style RJ
Max Ramp Angle 9.50°
Coolant Thru Yes
