  • INGERSOLL 15B4H-12015X8RE50 Milling Cutter Button Cutter 1.250 Screw M16 3 Flute Coolant 0.25 Max DOC

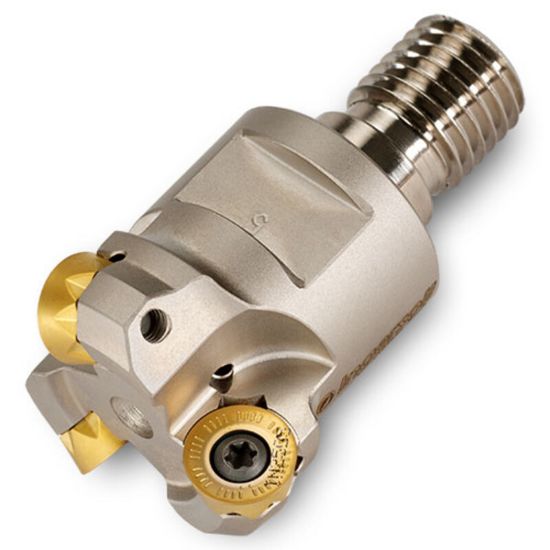

Picture of INGERSOLL 15B4H-12015X8RE50 Milling Cutter Button Cutter 1.250 Screw M16 3 Flute Coolant 0.25 Max DOC

INGERSOLL 15B4H-12015X8RE50 Milling Cutter Button Cutter 1.250 Screw M16 3 Flute Coolant 0.25 Max DOC

ANSI: 15B4H-12015X8RE50

ISO: 15B4H-12015X8RE50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2915273
Delivery date: 3-5 days
$373.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Ramp Milling, Pocket Milling, Face Milling
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Dimensional Specifications
Cut Dia Max 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Size M16
Machine Side Connection Type Screw On
Flutes/Inserts 3
Depth Of Cut Max 0.2500
Cutter Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 13
Cut Dia Min 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Insert Style RJ
Max Ramp Angle 9.50°
