  • INGERSOLL 15B4H-10020S1RE50 Milling Cutter Button Cutter 1.000 Cylindrical 1.0000 2 Flute Coolant 0.25 Max DOC 6.000 OAL

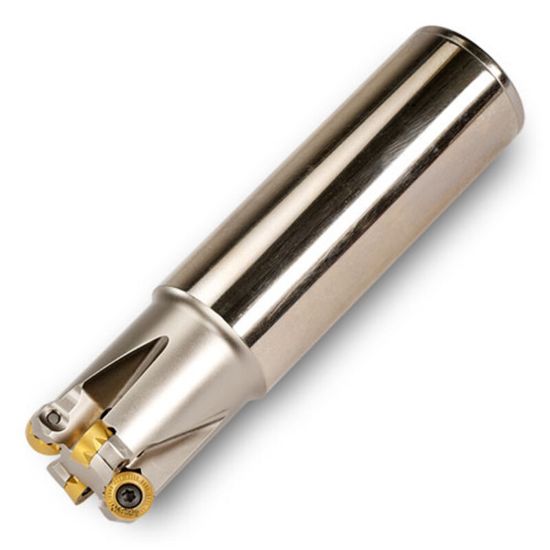

Picture of INGERSOLL 15B4H-10020S1RE50 Milling Cutter Button Cutter 1.000 Cylindrical 1.0000 2 Flute Coolant 0.25 Max DOC 6.000 OAL

INGERSOLL 15B4H-10020S1RE50 Milling Cutter Button Cutter 1.000 Cylindrical 1.0000 2 Flute Coolant 0.25 Max DOC 6.000 OAL

ANSI: 15B4H-10020S1RE50

ISO: 15B4H-10020S1RE50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2915293
Delivery date: 3-5 days
$301.47

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Pocket Milling, Round Milling, Ramp Milling
Package Size 1
Made In USA No
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 13
Cutter Dia 1.0000 25.40MM
Cut Dia Min 0.5100 12.95MM
Depth Of Cut Max 0.2500
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 6.0000 152.40MM
Tool Material Steel
Flutes/Inserts 2
Cutting & Machining Properties
Max Ramp Angle 1.00°
Insert Shape/Cutter Pocket Shape Round
Insert Style RJ
Coolant Thru Yes
