  • INGERSOLL 15B1H042043X8R00 Milling Cutter Button Cutter 1.654 Screw M16 4 Flute Coolant 0.236 Max DOC

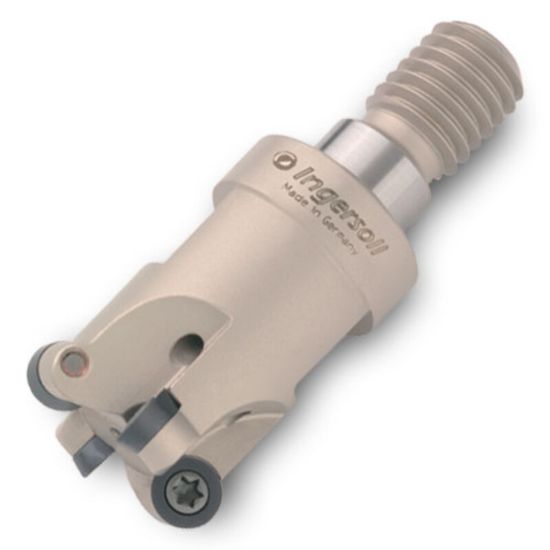

Picture of INGERSOLL 15B1H042043X8R00 Milling Cutter Button Cutter 1.654 Screw M16 4 Flute Coolant 0.236 Max DOC

INGERSOLL 15B1H042043X8R00 Milling Cutter Button Cutter 1.654 Screw M16 4 Flute Coolant 0.236 Max DOC

ANSI: 15B1H042043X8R00

ISO: 15B1H042043X8R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3017059
Delivery date: 3-5 days
$348.13
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Application Round Milling, Face Milling, Ramp Milling, Pocket Milling
Insert Type Positive
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.2360
Tool Material Steel
Insert Size Ic 12
Flutes/Inserts 4
Machine Side Connection Type Screw On
Cut Dia Max 1.6535 42.00MM
Machine Side Connection Size M16
Cutter Dia 1.6540 42.11MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Insert Style RH
Max Ramp Angle 8.00°
