  • INGERSOLL 15B1G035043X8R00 Milling Cutter Button Cutter 1.378 Screw M16 4 Flute Coolant 0.197 Max DOC

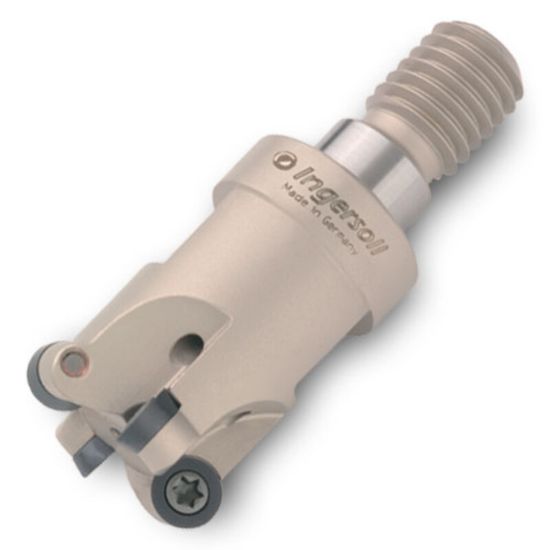

Picture of INGERSOLL 15B1G035043X8R00 Milling Cutter Button Cutter 1.378 Screw M16 4 Flute Coolant 0.197 Max DOC

INGERSOLL 15B1G035043X8R00 Milling Cutter Button Cutter 1.378 Screw M16 4 Flute Coolant 0.197 Max DOC

ANSI: 15B1G035043X8R00

ISO: 15B1G035043X8R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3017060
Delivery date: 3-5 days
$301.47
Products specifications
Attribute name Attribute value
General Product Information
Application Round Milling, Pocket Milling, Face Milling, Ramp Milling
Package Size 1
Insert/Tool Tool
Insert Type Positive
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 4
Depth Of Cut Max 0.1970
Tool Material Steel
Machine Side Connection Size M16
Insert Size Ic 10
Machine Side Connection Type Screw On
Cutter Dia 1.3780 35.00MM
Cut Dia Max 1.3780 35.00MM
Cutting & Machining Properties
Max Ramp Angle 8.00°
Insert Style RH
Insert Shape/Cutter Pocket Shape Round
Coolant Thru Yes
