  • INGERSOLL 15B1F-1003780R01 Milling Cutter Button Cutter 1.000 Cylindrical 1.0000 2 Flute Coolant 0.18 Max DOC 6.000 OAL

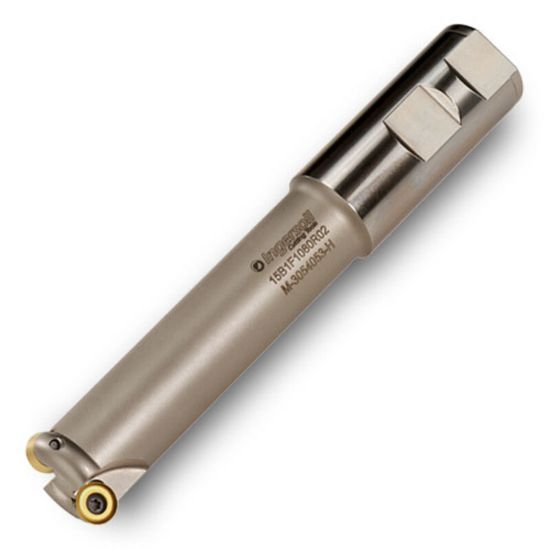

Picture of INGERSOLL 15B1F-1003780R01 Milling Cutter Button Cutter 1.000 Cylindrical 1.0000 2 Flute Coolant 0.18 Max DOC 6.000 OAL

INGERSOLL 15B1F-1003780R01 Milling Cutter Button Cutter 1.000 Cylindrical 1.0000 2 Flute Coolant 0.18 Max DOC 6.000 OAL

ANSI: 15B1F-1003780R01

ISO: 15B1F-1003780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3011038
Delivery date: 3-5 days
$391.07

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Round Milling, Pocket Milling, Ramp Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Overall Len 6.0000 152.40MM
Insert Size Ic 9
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Depth Of Cut Max 0.1800
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Coolant Thru Yes
Max Ramp Angle 9.00°
Insert Style RP
